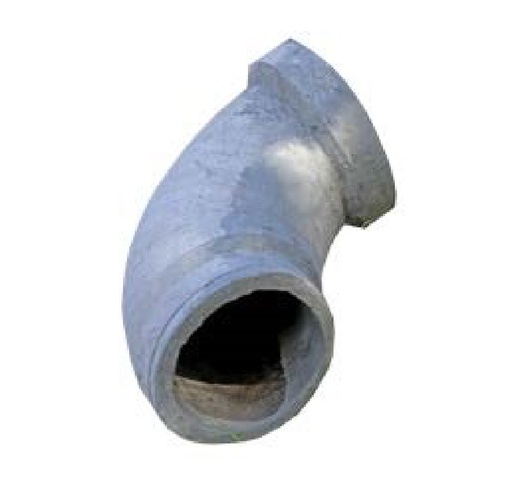

Concrete Pipe Bends
Connection that directs water in pipes along sewer lines.
- The designer has more control over pipe strength than any other facet of the
- project.
- There is less reliance on quality installation by the installer.
- There is lower embedment material cost.
- There is less compaction required.
- It is easier to maintain grade and alignment.
- There are no excess deflection concerns.
- There is a lower life cycle cost of the project.
- There is a lower maintenance cost over the design life of the project.
- There is a reduced likelihood of failure.
- A lower risk for the specifier, designer and owner of the project, and reduced overall
- liability to the public after the project has been commissioned.
|
Application |
Product Code |
Imperial Dim. Dia (in) x Degrees |
Weight (kgs) |
For Flexible Jointed pipes |
For Ogee Jointed pipes |
For Rigid Jointed pipes |
|
Connection that directs water in pipes along sewer lines.
|
1-15-310-0100-45 |
4” x 450 |
18 |
No |
Yes |
Yes |
|
|
1-15-310-0100-90 |
4” x 900 |
19 |
No |
Yes |
Yes |
|
|
1-15-310-0150-45 |
6” x 450 |
25 |
Yes |
Yes |
Yes |
|
|
1-15-310-0150-90 |
6” x 900 |
23 |
Yes |
Yes |
Yes |
|
|
1-15-310-0225-45 |
9” x 450 |
44 |
Yes |
Yes |
Yes |
|
|
1-15-310-0225-90 |
9” x 900 |
41 |
Yes |
Yes |
Yes |
|
|
1-15-310-0300-45 |
12” x 450 |
94 |
Yes |
Yes |
Yes |
|
|
1-15-310-0300-90 |
12” x 900 |
97 |
Yes |
Yes |
Yes |
