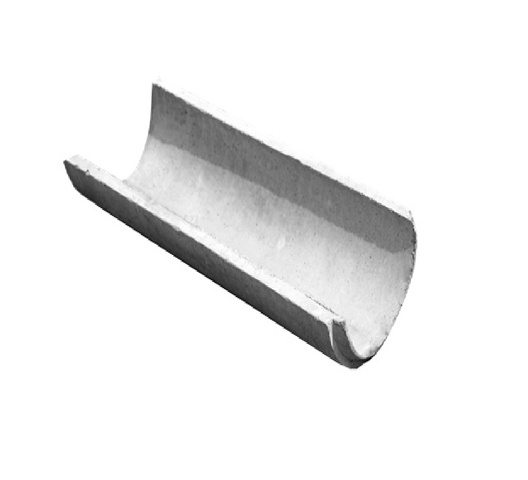

Half Round Ogee Concrete Pipes
Used for open storm water drainage systems
- The designer has more control over pipe strength than any other facet of the
- project.
- There is less reliance on quality installation by the installer.
- There is lower embedment material cost.
- There is less compaction required.
- It is easier to maintain grade and alignment.
- There are no excess deflection concerns.
- There is a lower life cycle cost of the project.
- There is a lower maintenance cost over the design life of the project.
- There is a reduced likelihood of failure.
- A lower risk for the specifier, designer and owner of the project, and reduced overall
- liability to the public after the project has been commissioned.
|
Application |
Product Code |
Imperial Dim. Dia x Height (in)) |
Metric Dim. Dia x Height (mm) |
Weight(kgs) |
Pcs/ton |
|
Used for open storm water drainage systems. |
1-15-240-0150-1000
|
6” x 39”
|
150 x 1000
|
14 |
71 |
|
|
1-15-240-0225-1000
|
9” x 39”
|
225 x 1000
|
28 |
35 |
|
|
1-15-240-0300-1000 |
12” x 39”
|
300 x 1000
|
39 |
26 |
|
|
1-15-240-0375-1000
|
15” x 39”
|
375 x 1000
|
56 |
18 |
|
|
1-15-240-0450-1000
|
18” x 39”
|
450 x 1000
|
76 |
13 |
|
|
1-15-240-0525-1000
|
21” x 39”
|
525 x 1000
|
88 |
11 |
|
|
1-15-240-0600-1000
|
24” x 39”
|
600 x 1000
|
124 |
8 |
|
|
1-15-240-0900-1000
|
36” x 39”
|
900 x 1000
|
234 |
4 |
