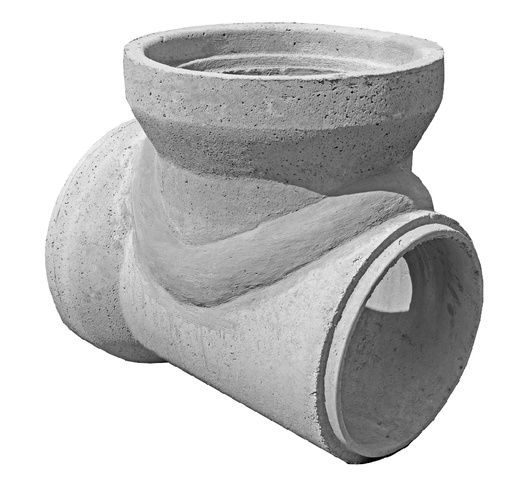

Concrete Backdrops and Junctions Pipes
Acts as a connector of different pipes with different levels of flow
- The designer has more control over pipe strength than any other facet of the
- project.
- There is less reliance on quality installation by the installer.
- There is lower embedment material cost.
- There is less compaction required.
- It is easier to maintain grade and alignment.
- There are no excess deflection concerns.
- There is a lower life cycle cost of the project.
- There is a lower maintenance cost over the design life of the project.
- There is a reduced likelihood of failure.
- A lower risk for the specifier, designer and owner of the project, and reduced overall
- liability to the public after the project has been commissioned.
|
Application |
Product Code |
Imperial Dim. Dia x Height (in) |
Metric Dim. Dia x Height (mm) |
Weight (kgs) |
pcs/ton |
For Flexible Jointed pipes |
For Ogee Jointed pipes |
For Rigid Jointed pipes |
|
Acts as a connector of different pipes with different levels of flow
|
1-15-270-0100-0100 |
4” x 4” |
100 x 100 |
27 |
37 |
No |
Yes |
Yes |
|
|
1-15-270-0100-0150 |
4” x 6” |
100 x 150 |
40 |
25 |
No |
Yes |
Yes |
|
|
1-15-270-0100-0225 |
4” x 9” |
100 x 225 |
59 |
17 |
Yes |
Yes |
Yes |
|
|
1-15-270-0100-0300 |
4” x 12” |
100 x 300 |
79 |
13 |
Yes |
Yes |
Yes |
|
|
1-15-270-0150-0150 |
6” x 6” |
150 x 150 |
42 |
24 |
Yes |
Yes |
Yes |
|
|
1-15-270-0150-0225 |
6” x 9” |
150 x 225 |
63 |
16 |
Yes |
Yes |
Yes |
|
|
1-15-270-0150-0300 |
6” x 12” |
150 x 300 |
84 |
12 |
Yes |
Yes |
Yes |
|
|
1-15-270-0150-0375 |
6” x 15” |
150 x 375 |
105 |
10 |
Yes |
Yes |
Yes |
|
|
1-15-270-0150-0450 |
6” x 18” |
150 x 450 |
126 |
8 |
Yes |
Yes |
Yes |
|
|
1-15-270-0150-0600 |
6” x 24” |
150 x 600 |
168 |
6 |
Yes |
Yes |
Yes |
|
|
1-15-270-0225-0225 |
9” x 9” |
225 x 225 |
80 |
13 |
Yes |
Yes |
Yes |
|
|
1-15-270-0300-0300 |
12” x 12” |
300 x 300 |
112 |
9 |
Yes |
Yes |
Yes |
|
|
1-15-270-0375-0375 |
15” x 15” |
375 x 375 |
158 |
6 |
Yes |
Yes |
Yes |
|
|
1-15-270-0450-0450 |
18” x 18” |
450 x 450 |
294 |
3 |
No |
Yes |
Yes |
