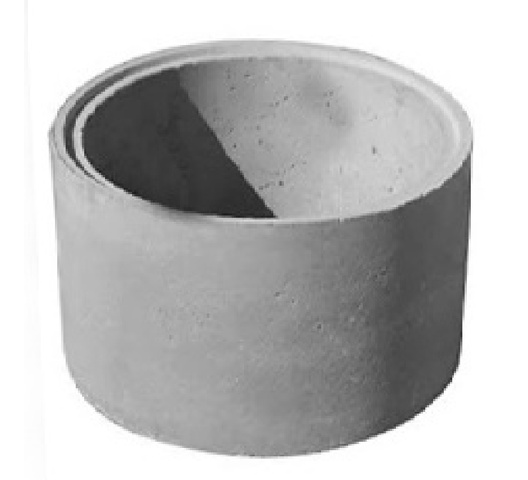

Manhole Rings
Used as a manhole to clear blockage in drainage systems.
- The designer has more control over pipe strength than any other facet of the
- project.
- There is less reliance on quality installation by the installer.
- There is lower embedment material cost.
- There is less compaction required.
- It is easier to maintain grade and alignment.
- There are no excess deflection concerns.
- There is a lower life cycle cost of the project.
- There is a lower maintenance cost over the design life of the project.
- There is a reduced likelihood of failure.
- A lower risk for the specifier, designer and owner of the project, and reduced overall
- liability to the public after the project has been commissioned.
|
Application |
Product Code |
Imperial Dim. Dia x Height (in) |
Metric Dim. Dia x Height (mm) |
Weight (kgs) |
pcs/ton |
|
Used as a manhole to clear blockage in drainage systems. |
1-15-315-1200-1000 |
48” x 39” |
1200 x 1000 |
760 |
1 |
|
|
1-15-315-1200-0750 |
48” x 30” |
1200 x 750 |
570 |
1 |
|
|
1-15-315-1200-0610 |
48” x 24” |
1200 x 610 |
465 |
2 |
|
|
1-15-315-1200-0450 |
48” x 18” |
1200 x 450 |
345 |
2 |
|
|
1-15-315-1200-0305 |
48” x 12” |
1200 x 305 |
232 |
4 |
|
|
1-15-315-1070-1000 |
42” x 39” |
1070 x 1000 |
600 |
1 |
|
|
1-15-315-1070-0750 |
42” x 30” |
1070 x 750 |
450 |
2 |
|
|
1-15-315-1070-0610 |
42” x 24” |
1070 x 610 |
365 |
2 |
|
|
1-15-315-1070-0450 |
42” x 18” |
1070 x 450 |
270 |
3 |
|
|
1-15-315-1070-0305 |
42” x 12” |
1070 x 305 |
180 |
5 |
|
|
1-15-315-0915-1000 |
36” x 39” |
915 x 1000 |
535 |
2 |
