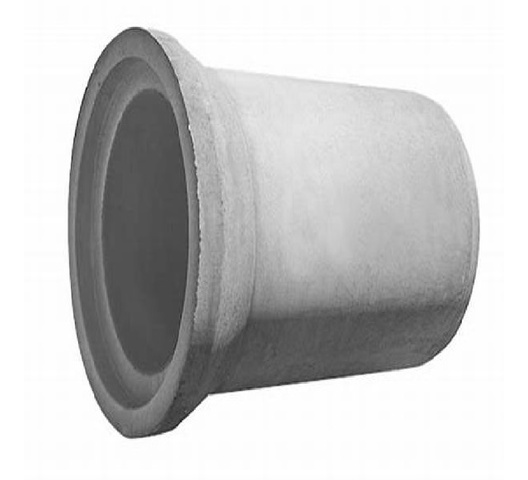

Spigot & Socket for Flexible jointed Concrete Pipes
Spigot & socket for Flexible jointed concrete pipes used for sewerage systems.
- The designer has more control over pipe strength than any other facet of the
- project.
- There is less reliance on quality installation by the installer.
- There is lower embedment material cost.
- There is less compaction required.
- It is easier to maintain grade and alignment.
- There are no excess deflection concerns.
- There is a lower life cycle cost of the project.
- There is a lower maintenance cost over the design life of the project.
- There is a reduced likelihood of failure.
- A lower risk for the specifier, designer and owner of the project, and reduced overall
- liability to the public after the project has been commissioned.
|
Application |
Product Code |
ID (mm) |
ED (mm) |
Effective Length (mm) |
Weight (kgs) |
Wall Thickness (mm) |
OD (mm) |
l1 (mm) |
l2 (mm) |
Rubber Rings Dia. (mm) |
|
Spigot & socket for Flexible jointed concrete pipes used for sewerage systems. |
1-15-200-0150-1200
|
150
|
210
|
1200 |
54 |
30 |
300 |
50 |
50 |
230 |
|
|
1-15-200-0225-1200
|
225
|
301 |
1200 |
101 |
38 |
380 |
55 |
55 |
235 |
|
|
1-15-200-0300-1200
|
300
|
380 |
1200 |
148 |
40 |
490 |
55 |
55 |
280 |
|
|
1-15-200-0375-1200
|
375 |
465 |
1200 |
198 |
45 |
580 |
55 |
55 |
270 |
|
|
1-15-200-0450-1500
|
450 |
590
|
1500 |
433 |
70 |
680 |
100 |
100 |
310 |
|
|
1-15-200-0525-1500
|
525 |
665 |
1500 |
515 |
70 |
800 |
100 |
100 |
350 |
|
|
1-15-200-0600-1500
|
600
|
760
|
1500 |
634 |
80 |
870 |
100 |
600 |
350 |
|
|
1-15-200-0760-1500
|
760
|
920 |
1500 |
920 |
80 |
1040 |
100 |
760 |
400 |
|
|
1-15-200-0825-1500
|
825 |
991 |
1500 |
1150 |
83 |
1100 |
115 |
825 |
440 |
|
|
1-15-200-0900-1500
|
900 |
1100 |
1500 |
1350 |
100 |
1250 |
115 |
900 |
400 |
