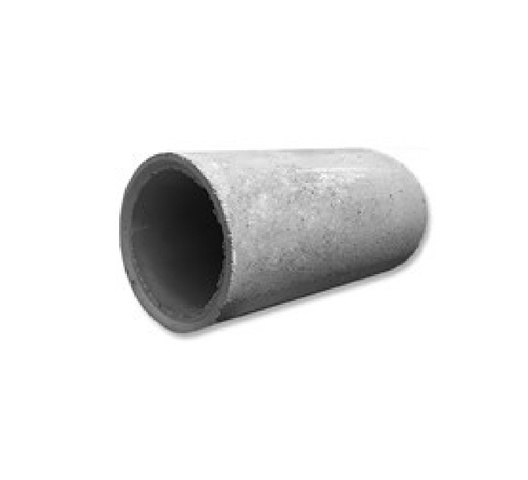

Porous Concrete Pipes
Capture water around external area of porous pipes.
- The designer has more control over pipe strength than any other facet of the
- project.
- There is less reliance on quality installation by the installer.
- There is lower embedment material cost.
- There is less compaction required.
- It is easier to maintain grade and alignment.
- There are no excess deflection concerns.
- There is a lower life cycle cost of the project.
- There is a lower maintenance cost over the design life of the project.
- There is a reduced likelihood of failure.
- A lower risk for the specifier, designer and owner of the project, and reduced overall
- liability to the public after the project has been commissioned.
|
Application |
Product Code |
ID (mm) |
ED (mm) |
Effective Length (mm) |
Weight (kgs) |
Wall Thickness (mm) |
l1 (mm) |
l2 (mm) |
|
Capture water around external area of porous pipes |
1-15-230-0100-0760 |
100 |
150 |
760 |
16 |
25 |
15 |
15 |
|
|
1-15-230-0150-1000 |
150 |
204 |
1000 |
32 |
27 |
20 |
20 |
|
|
1-15-230-0225-1000 |
225 |
285 |
1000 |
51 |
30 |
20 |
20 |
|
|
1-15-230-0300-1000 |
300 |
374 |
1000 |
72 |
37 |
25 |
25 |
